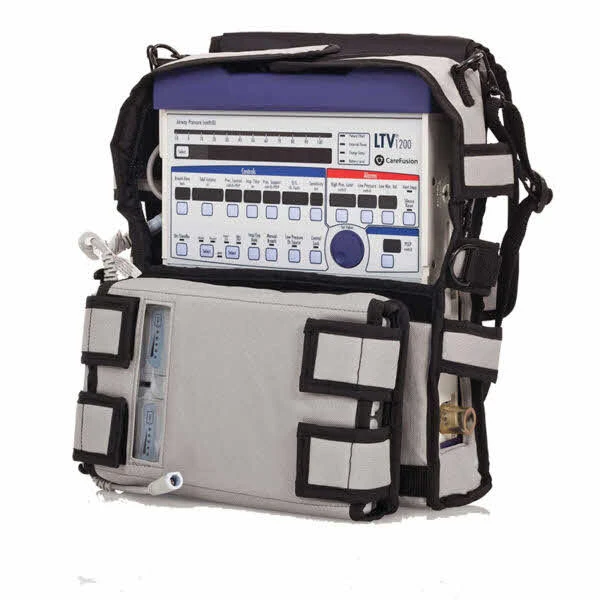

Vyaire LTV 1200 VentilatorBy Master Medical Equipment

The Carefusion LTV® Series 1200 ventilator supports infant, pediatric and adult patients in ICU, ER and patient transport with ventilation pre-sets. These settings can be refined using the touch-turn-touch interface on the LED display. The LTV 1200 ventilator also provides a wide range of ventilation therapies to meet patient needs.

Patented Turbine technology in the LTV 1200 transport ventilator eliminates the need for a high-pressure air source, allowing transport ventilation when needed. By optimizing trial settings for each patient, ensure favorable levels of support throughout the weaning process. The O2 Conserve feature of the LTV 1200 reduces oxygen consumption as necessary, extending the sometimes scarce resource of oxygen during transport or emergency situations.

Features:

• Peak Inspiratory Pressure: 0–120 cmH2O
• Mean Airway Pressure: 0–99 cmH2O
• PEEP: 0–99 cmH2O
• Breath Rate: 0–250 BPM
• Airway Pressure Display: -10–108 cmH2O
• Exhaled Tidal Volume: 0–4,000 mL
• Exhaled Minute Volume: 0–99.9 L
• I:E Ratio: 99:1–1:99
• Calculated Peak Flow: 10–100 LPM
• AutoPEEP: 0–100 cmH2O
• Static Compliance: 1–999 mL/cmH2O
• Patient Effort: Green LED

Specifications:

• Weight: 14.5lb
• Dimensions: 13.5in L × 10.5in W × 3.25in H
