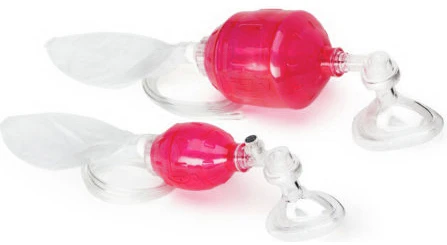

O-Two ™SMART Bag ®Disposable BVMBy O-Two Medical

The SMART BAG® bag valve mask resuscitator has been designed to allow the provision of consistent ventilations while helping to reduce risks associated with conventional BVM ventilation. The unique actuating mechanism hidden inside the neck bushing of the SMART BAG MO actually responds to the rescuer and the patient.

By responding to the rescuer’s squeeze and release of the BVM, the SMART BAG MO limits the excessive flow of gas into the patient’s airway, which aims to reduce the risk of gastric insufflation by effectively lowering the airway pressure generated. In a normally compliant and resistant airway, the airway pressure is limited to below the esophageal sphincter opening pressure of 19 cm H2O.

The response by the SMART BAG MO is proportional to the rescuers squeeze. The harder the squeeze, the greater the greater the restriction to flow. This alerts the rescuer to ease up on the squeeze, reducing the effort required, resulting in the airway pressure being kept to the minimum to achieve adequate ventilation. At no time is the flow of gas into the patient compromised by the SMART BAG MO, allowing the rescuer to ventilate even the stiffest lung or most restrictive airway.

Features:

• Single-use
• Transparent universal facemask allows for easy monitoring of skin color, signs of vomitus of body fluids
• Complete with oxygen reservoir system
• Controlled flowrate
• Controlled airway pressure
• Controlled ventilation
• Reduced risk of gastric insufflation

Specifications:

• Operating temperature range: -18°C to 50°C (0°F to 122°F)
• Storage temperature range: -40°C to +60°C (-40°F to +140°F)
• Inspiratory resistance: 3.3 cm H2O
• Expiratory resistance: 2.2 cm H2O
• Dead space: 7.0 ml
• Adult bag volume: 1700 ml
• Child bag volume: 470 ml
• Reservoir volume: 2700 ml
