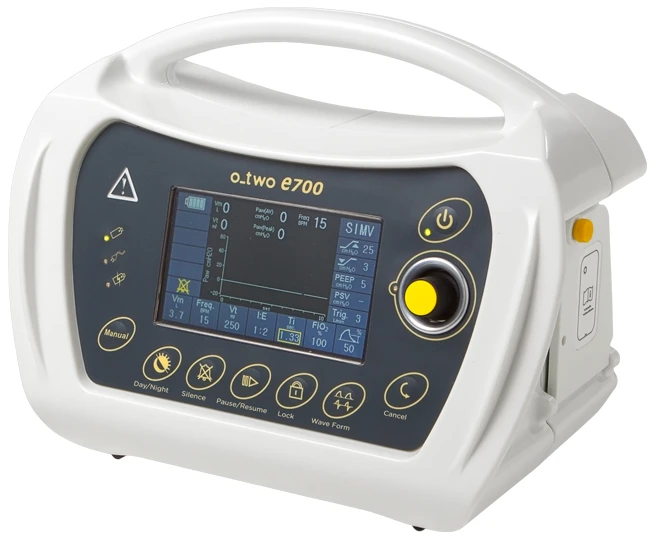

O-Two ™E700 Electronic Automatic Transport VentilatorBy O-Two Medical

The O-Two e700 Transport Ventilator ushers in a ”new era” in controlled ventilation for resuscitation and patient transport! These electronically controlled, pneumatically powered ventilators provide a range of ventilation solutions for all types of patient requirements and all levels of pre-hospital and in-hospital healthcare professionals.

Simplicity
The ventilation solutions offered by the e700 cannot be compared to any other products of its type. The units are self-contained and only require attachment to a regulated oxygen supply and a transport ventilator circuit for immediate use. The easily replaceable, long lasting (18 hour) battery can be charged while inside the ventilator or can be removed for charging and quickly replaced by a fresh battery pack. The display lighting has both day and night modes for easy visualization of the ventilator settings in any ambient light conditions. Designed for a range of patient sizes (from large adult to infant), the e700 comes in a very small and lightweight package.

Safety
The continuous monitoring of ventilation parameters ensures that the device is always fully functional and ready for immediate use. The wide range of both visual and audible alarms provides the healthcare professional with warnings of any changes in patient or device parameters. Correction of any alarm is simple to achieve due to the compact and easy to operate control layout.

Functionality
The simplicity of operation masks the level of sophistication offered by the e700, providing ventilation for both resuscitation and transport with the minimum of control adjustments required for simple patient set up. The range of ventilation modes offered provides ”ICU level” patient care while maintaining the ease of operation for all patient care and transport situations in the pre-hospital and in-hospital setting. The inclusion of ventilation modes for ”mask or protected airway CPR”, with visual and audible prompts, adds another dimension to the application for these products not found on other ventilators.

Controllability
The operation of the controls of the e700 provide an ease of use concept that is second to none. These products are designed to speed up and simplify even the most complex ventilation set up. There are no multiple screens to scroll through to establish patient ventilation parameters. The units have an initial, pre-set, start-up mode requiring only the selection of patient size to begin ventilation.

Economy
In addition to the patient care benefits, the e700 ventilator provides excellent low gas consumption and an extremely long battery operating time. This assists in providing controlled ventilation to the patient over an extended period, making the e700 ventilator ideal for long transports where both electrical and oxygen supplies are always a critical concern.

Specifications:

• Power Source: Compressed Oxygen
• Circuit Control Source: Electric
• Ventilation Modes: SIMV w/PSV, A/C (VCV, PCV), BiLVLl w/PSV, CPAP w/PSV, Mask CPR (MCPR) Intubated CPR (ICPR) Adult/Child/Infant Quick Start Mode, Intuitive Patient Apnea Backup (IPAB)
• Patient Size Range: 6 Kg to Large Adult
• Ventilation Frequency: 5 – 60
• Minute Volume (L): Calculated
• Tidal Volume (ml): 50 – 2000
• Quick Start Mode Default VT/BPM: Adult 500/10 Child 250/15, Infant 100/20
• Manually Triggered Ventilation: Yes
• I:E Ratio: Adjustable (1:4 to 3:1)
• PEEP (cm H2O): Adjustable 0 – 20
• CPAP (cm H2O): Adjustable 4 – 20
• O2 (%) (FiO2): 60 or 100 (0.6 – 1.0)
• Pmax (cm H2O): 10 – 80
• Pmin (cm H2O): 0 – 20
• PSV (cm H2O): 4 – 40
• PCV (cm H2O): 4 – 50
• Ti (sec.): 0.14 – 9.0
• Trigger Sensitivity (L/min): 3 – 15
• Inhalation Pressure (cm H2O): 4 – 50
• Pressure Support Termination: 20% – 80% of max. flow
• Apnea Back Up Time (sec.): Adjustable 10 – 60
• Battery Operating Time: 18 hours for default settings
• Built-in Battery Charger: Yes
• A/C Power Adapter: 100-240VAC/ 19VDC, 4.74A
• Patient Circuit: O-Two electronic ventilator circuit
• Mounting Bracket: Multi-configuration bracket
• Display Type: 4.3” Color TFT Screen
• Live Monitoring: Vm, vt, Paw (AV), PAW (Peak), F, BPM, Battery level
• Real Time Waveform: Selectable Pressure or Flow
• DAY/NIGHT Display Mode: Yes
• Parameter Settings: Single, Multi-Function Rotary Control
• Lock Key Function: Yes
• Pause Function: Yes
• Alarms (Visual and Audible): Gas Supply Pressure, Pmax, Pmin, Low Battery, BCI, Apnea, Leak, Vm min., Vm max.
• Audible Silence: Yes, 120 seconds
• Temperature Range:
  • Operating -18oC to +50oC, Rh: 15% to 95%
  • Storage -40oC to +60oC, Rh: 15% to 95%
• Dimensions (mm): 250 x 200 x 155
• Weight (Kg) with/without Battery: 2.4 / 1.70
• Warranty: This product has a two year warranty against manufacturer’s defects.
