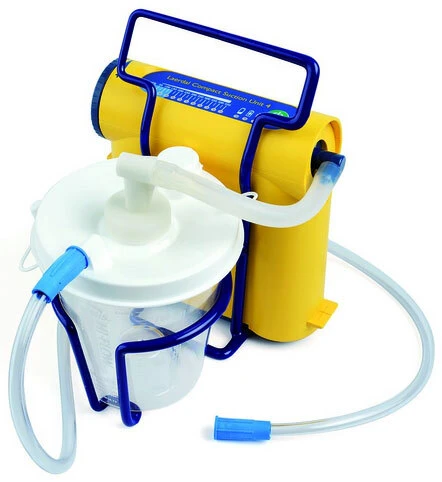

Laerdal Compact Suction Complete Units (LCSU ®4)By Laerdal

Laerdal’s Compact Suction Unit (LCSU®) 4 combines rugged design with lightweight portability, an essential tool for every first responder.  The LCSU® 4 exceeds international performance standards and its small size and shape make it easy to fit into a hospital crash cart or in a first responder vehicle.

Features:

• Latex free
• One-hand-grip design
• Small and lightweight
• Click-in-place 300 ml canister, no vacuum tube needed
• 800 ml canister option when extra volume is needed
• Disposable canister systems
• Easy to convert between 300 and 800 ml canister version
• Internal integrated filter systems for all canisters
• Canister overflow shutoff
• High efficiency filter kit (for 800 ml solution)
• HEPA rated bacterial filter
• Big vacuum regulator dial, with “clicking sound”
• LED display for use day or night
• Battery level indicator
• Children vacuum range area (marked in blue) on the control panel
• Arrows pointing the vacuum directions
• Wire Stand for stability (for both versions)
• High density carry case included on purchase of Compact Suction Unit
• No-tools-necessary field changeable battery
• Rechargeable Battery, NiMH 12 volt 1.6 Ah.
• Battery run time: Approximately 45 minutes (free flow)
• Approximately 5 hours of charging time lasts up to 6 months
• AC/DC Adapter Charger (100-240 V)
• External Battery Charger available to facilitate battery rotation if required
• 2 year limited warranty (excluding the canisters, tubing systems and battery. Battery = 90 days)
• Multi language Directions for Use (19 languages)

CE marked

• This product is in compliance with the essential requirements of Council Directive 93/42/EEC Medical Device Directive, as amended by Council Directive 2007/47/EC, class IIa

Performance

• High flow / High vacuum
• Air Flow @ Vacuum Inlet: 27 LPM (free flow) typical
• Vacuum – Max.: 550+ mmHg (73.3 kPA)
• Vacuum – Range: 50 – 550+ mmHg (6.7 – 73.3 kPa)

Dimensions

• 300 ml canister version: 7.3″ x 10.3″ x 3.2″ (item# 88006101)
• 800 ml canister version: 9.3″ x 7.5″ x 9.3″ (item# 880051)

Weight

• 300 ml canister version: 3.3 lbs (item# 88006101)
• 800 ml canister version: 4.3 lbs (item# 880051)

Main Units Include:

• LCSU 4 #880051
  • 800 ml Disposable Canister
  • Patient Tube 6’
  • AC/DC Adapter Charger
  • AC Power-cord
  • Battery
  • Directions for Use
  • Carry Case (for 800 ml version)
  • Wire Stand
  • Vacuum Tube

• LCSU 4 #88006101
  • 300 ml Disposable Canister
  • Patient Tube 3’
  • AC/DC Adapter charger
  • AC Power-cord
  • Battery
  • Directions for Use
  • Carry Case (for 300 ml version)
