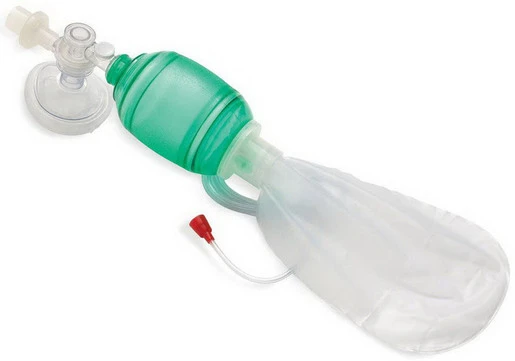

AirFlow Resuscitation/Ventilation Bag, PediatricBy AirLife

The AirFlow Resuscitator comes with a bacterial/viral filter, an oxygen reservoir and a mask. The Guardian Filter has a 19mm ID inlet port and accepts 19mm or 30mm PEEP valves. This disposable BVM may also have a built-in manometer in some units, which provides an extra and superior measure of clinical care, fostering better lung protection and promoting patient outcome.

Features:

• Single-patient use resuscitation bag available with or without integrated pressure manometer
• Integrated color-coded pressure manometer effectively promotes proper pressure delivery (<20cmH2O); the tri-color fields alert the risk level of delivered pressure
• Accurate pressure delivery helps reduce gastric insufflation, thus preventing vomiting, aspiration and pneumonia
• Pliable bag body allows optimal tactile feel of patient’s lung compliance
• Patient port swivel allows clinician to easily move around patient while maintaining proper resuscitation
• Bacterial/viral filter protects clinician from contaminated expiration content
• Multiple pediatric face masks optional

Specifications:

• Bag volume: 1000mL
• Stroke volume: < 700mL (ASTM Standard Hand)
• Dead space: 10 mL with mask or low dead space adapter
• Exhalation resistance: < 4cm H2O @ 5 Lpm flow
• Pressure relief (optional): 40cm H2O
• Attainable delivery pressure: 40cm H2O and override
• Ventilator frequency: < 60 bpm (NO LOAD)
• Operating temperature: -18ºC to 51ºC (0º TO 123ºF)
• Storage environment limits: -40ºC to 60ºC (-40º TO 140ºF)
• Patient port inlet: 15mm/22mm
• Average device mass without mask: 0.22kg (0.50lbs)
• Average length (basic model): 25cm (10″)
• Body mass use range: < 40kg (88lb.)
• Tidal volume: 500mL, 500mL, 500mL
• Rate: 12 bpm, 20 bpm, 30 bpm
• O2 flowrate: 10 Lpm, 10 Lpm, 10 Lpm
• FDO2: 99%, 99%, 98%
