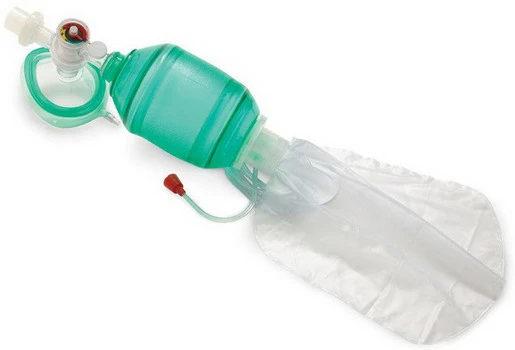

AirFlow Resuscitation/Ventilation Bag, InfantBy AirLife

The Infant AirFlow Resuscitator comes standard with a Guardian Bacterial/Viral Filter on the exhalation port for increased protection and safety of your staff. The Guardian Filter has a 19mm ID inlet port and accepts 19mm or 30mm PEEP valves. This disposable BVM also has a built-in manometer in some units, which provides an extra and superior measure of clinical care fostering better lung protection that will promote and enhance patient outcomes.

• Bag Volume: 300 ml
• Stroke Volume: < 150 ML (ASTM Standard Hand)
• Dead Space: 7 ml with mask or low dead space adapter
• Exhalation Resistance: < 5 cm H2O @ 5 lpm flow
• Pressure Relief (optional): 40 cm H2O
• Attainable Delivery Pressure: 40 cm H2O and override
• Ventilatory Frequency: > 90 bpm (NO LOAD)
• Operating Temperature: -18ºC to 51ºC (0º TO 123ºF)
• Storage Environment Limits: -40ºC to 60ºC (-40º TO 140ºF)
• Patient Port Inlet: 15mm/22mm
• Average Device Mass without Mask: 0.20 kg (0.46 lbs.)
• Average Length (Basic Model): 22.5 cm (9″)
• Body Mass Use Range: < 10 kg (22 lbs.)
• TIDAL VOLUME: 150 ml, 150 ml, 150 ml
• Rate: 15 bpm, 20 bpm, 30 bpm
• O2 Flowrate: 10 lpm, 10 lpm, 10 lpm
• FDO2: 99%, 99%, 99%
